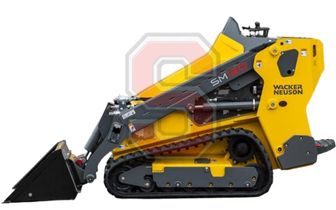

| Manufacturer | Wacker Neuson |
| Model | SM100 |
| Type | Mini skid steer |
| Lift Design | Radial |
| Years Made | 2021-2026 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 24.8 HP | 18.5 kW |
| Lifting Capacity (35% Tipping) | 999 lbs | 453 kg |
| Lifting Capacity (50% Tipping) | 1426 lbs | 647 kg |
| Operating Weight | 3300 lbs | 1497 kg |
| Tipping Load | 2855 lbs | 1295 kg |
| Lift Breakout Force | 3108 lbs | 1410 kg |
| Tilt Breakout Force | 3108 lbs | 1410 kg |
| Max. Travel Speed | 3.2 mph | 5.2 km |
| Ground Pressure | 4.1 psi | 28.3 kPa |
Cycle Time
| Raise Lift Arms | |
| Lower Lift Arms | |
| Bucket Rollback | |
| Bucket Dump |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 12.9 GPM | 48.8 LPM |
| Relief Pressure | 3045 psi | 210.0 Bar |
| Optional Flow | N/A | |
| Hydraulic Capacity |
Engine Specs
| Manufacturer | Yanmar |
| Model | 3TNV80FT |
| Type | Diesel |
| Cylinders | 3 |
| Emissions | Tier 4F |
| Rated Speed | 1800 RPM |
| Torque Power | |
| Combustion | Special swirl |
| Compression Ratio | 22.3 (Effective 20.6) |
| Firing Order | 1-2-3 |
| US | Metric | |
|---|---|---|
| Gross Power | 24.8 HP | 18.5 kW |
| Net Power | 24.7 HP | 18.4 kW |
| Displacement | 77.3 cu in. | 1266 cc |
| Bore | 3.1 in. | 8.0 cm |
| Stroke | 3.3 in. | 8.4 cm |
| Peak Torque | ||
| Coolant Capacity | 0.2 gal | 0.9 L |
| Engine Oil Capacity | ||
| Fuel Tank Capacity | 16.9 gal | 64.0 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 58.2 in. | 147.8 cm |
| Bucket Hinge Pin | 85.7 in. | 217.7 cm |
| Width | 35.5 in. | 90.2 cm |
| Length | 108.0 in. | 274.3 cm |
| Dump Height | 62.8 in. | 159.5 cm |
| Dump Reach | 21.9 in. | 55.6 cm |
| Ground Clearance | 7.8 in. | 19.8 cm |
| Dump Angle | 42° |
| Rollback Angle | 25° |
| Departure Angle | 25° |
Undercarriage
| US | Metric | |
|---|---|---|
| Track Width | 9.1 in. | 23.1 cm |
| Track Length | 84.3 in. | 214.1 cm |
| Ground Contact Length | 43.0 in. | 109.2 cm |
