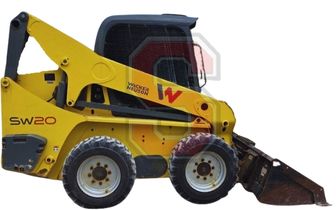

| Manufacturer | Wacker Neuson |
| Model | SW20 |
| Type | Skid steer loader |
| Lift Design | Vertical |
| Years Made | 2023-2025 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 56.0 HP | 41.8 kW |
| Lifting Capacity (35% Tipping) | 1350 lbs | 612 kg |
| Lifting Capacity (50% Tipping) | 2000 lbs | 907 kg |
| Operating Weight | 6437 lbs | 2920 kg |
| Tipping Load | 4200 lbs | 1905 kg |
| Lift Breakout Force | 5000 lbs | 2268 kg |
| Tilt Breakout Force | 5300 lbs | 2404 kg |
| Max. Travel Speed | 12.0 mph | 19.3 km |
Cycle Time
| Raise Lift Arms | |
| Lower Lift Arms | |
| Bucket Rollback | |
| Bucket Dump |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 20.0 GPM | 75.7 LPM |
| Relief Pressure | 3500 psi | 241 Bar |
| Optional Flow | N/A | |
| Hydraulic Capacity | 2.9 gal | 11.0 L |
Engine Specs
| Manufacturer | Kohler |
| Model | KDI 1903 TCR |
| Type | Diesel |
| Cylinders | 3 |
| Emissions | Tier 4 |
| Rated Speed | 2750 RPM |
| Torque Power | 1200 RPM |
| Combustion | Direct injection |
| Compression Ratio | |
| Firing Order | 1-2-3 |
| US | Metric | |
|---|---|---|
| Gross Power | 56.0 HP | 41.8 kW |
| Net Power | ||
| Displacement | 113.6 cu in. | 1861 cc |
| Bore | 3.5 in. | 8.8 cm |
| Stroke | 4.0 in. | 10.2 cm |
| Peak Torque | 167 ft-lb | 225 N∙m |
| Coolant Capacity | ||
| Engine Oil Capacity | ||
| Fuel Tank Capacity | 30.0 gal | 113.6 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 81.5 in. | 207.0 cm |
| Bucket Hinge Pin | 124.0 in. | 315.0 cm |
| Width | 65.9 in. | 167.4 cm |
| Length | 134.9 in. | 342.6 cm |
| Dump Height | 96.5 in. | 245.1 cm |
| Dump Reach | 34.1 in. | 86.6 cm |
| Ground Clearance | 7.6 in. | 19.3 cm |
| Dump Angle | 42° |
| Rollback Angle | |
| Departure Angle | 24° |
