| Manufacturer | Wacker Neuson |

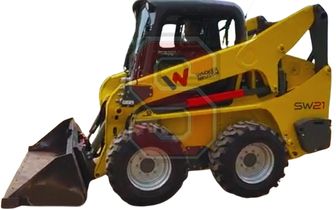

| Model | SW21 |
| Type | Skid steer loader |
| Lift Design | Vertical |
| Years Made | 2020-2024 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 74.0 HP | 55.2 kW |
| Lifting Capacity (35% Tipping) | 1420 lbs | 644 kg |
| Lifting Capacity (50% Tipping) | 2100 lbs | 952 kg |
| Operating Weight | 6512 lbs | 2954 kg |
| Tipping Load | 4400 lbs | 1996 kg |
| Lift Breakout Force | 5000 lbs | 2268 kg |
| Tilt Breakout Force | 5300 lbs | 2404 kg |
| Max. Travel Speed | 12.0 mph | 19.3 km |
Cycle Time
| Raise Lift Arms | |
| Lower Lift Arms | |
| Bucket Rollback | |
| Bucket Dump |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 20.0 GPM | 75.7 LPM |
| Relief Pressure | 3500 psi | 241 Bar |
| Optional Flow | 30.0 GPM | 113.6 LPM |
| Hydraulic Capacity | 2.9 gal | 11.0 L |
Engine Specs
| Manufacturer | Kohler |
| Model | KDI 2504 TCR |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier 4 Final |
| Rated Speed | 2750 RPM |
| Torque Power | |
| Combustion | Direct injection |
| Compression Ratio | |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 74.3 HP | 55.4 kW |
| Net Power | 73.8 HP | 55.0 kW |
| Displacement | 151.5 cu in. | 2482 cc |
| Bore | 3.5 in. | 8.8 cm |
| Stroke | 4.0 in. | 10.2 cm |
| Peak Torque | ||
| Coolant Capacity | ||
| Engine Oil Capacity | 2.6 gal | 9.8 L |
| Fuel Tank Capacity | 32.8 gal | 124.0 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 81.5 in. | 207.0 cm |
| Bucket Hinge Pin | 124.0 in. | 315.0 cm |
| Width | 65.9 in. | 167.4 cm |
| Length | 134.9 in. | 342.6 cm |
| Dump Height | 96.5 in. | 245.1 cm |
| Dump Reach | 34.1 in. | 86.6 cm |
| Ground Clearance | 7.6 in. | 19.3 cm |
| Dump Angle | 42° |
| Rollback Angle | |
| Departure Angle | 24° |
