| Manufacturer | Yanmar |

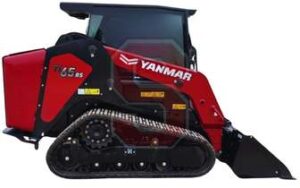

| Model | Yanmar TL65RS-1C |
| Type | Compact track loader |
| Lift Design | Radial |
| Years Made | 2024-2026 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 67.0 HP | 50.0 kW |
| Lifting Capacity (35% Tipping) | 2100 lbs | 953 kg |
| Lifting Capacity (50% Tipping) | 3000 lbs | 1361 kg |
| Operating Weight | 8915 lbs | 4044 kg |
| Tipping Load | 6000 lbs | 2722 kg |
| Lift Breakout Force | ||
| Tilt Breakout Force | ||
| Max. Travel Speed | 7.5 mph | 12.1 km |
| Ground Pressure | 5.7 psi | 39.3 kPa |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 21.4 GPM | 81.0 LPM |
| Relief Pressure | 3480 psi | 227.5 bar |
| Optional Flow | 26.7 GPM | 101.0 LPM |
| Hydraulic Capacity |
Engine Specs
| Manufacturer | Yanmar |
| Model | 4TN86CHT |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier 4F/Stage V |
| Rated Speed | |
| Torque Power | |
| Combustion | Direct injection |
| Compression Ratio | |
| Firing Order |
| US | Metric | |
|---|---|---|
| Gross Power | 67.0 HP | 50.0 kW |
| Net Power | ||
| Displacement | 128 cu in. | 2100 cc |
| Bore | ||
| Stroke | ||
| Peak Torque | 193.8 ft-lb | 262.8 N∙m |
| Coolant Capacity | ||
| Engine Oil Capacity | ||
| Fuel Tank Capacity | 21.4 gal | 81.0 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 82.0 in. | 208.3 cm |
| Bucket Hinge Pin | 120.0 in. | 318.8 cm |
| Width | 66.0 in. | 167.6 cm |
| Length | 142.0 in. | 360.7 cm |
| Dump Height | ||
| Dump Reach | 17.5 in. | 44.5 cm |
| Ground Clearance | 12.8 in. | 32.4 cm |
| Dump Angle | 34° |
| Rollback Angle | 36° |
| Departure Angle | 20° |
Undercarriage
| US | Metric | |
|---|---|---|
| Track Width | 12.6 in. | 32.0 cm |
| Track Length | 109.7 in. | 278.6 cm |
| Ground Contact Length |
