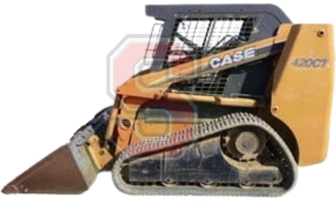

| Manufacturer | Case |
| Model | 420CT |
| Type | Compact track loader |
| Lift Design | Radial |
| Years Made | 2008-2012 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 59.0 HP | 44.0 kW |
| Lifting Capacity (35% Tipping) | 1750 lbs | 793.8 kg |
| Lifting Capacity (50% Tipping) | 2500 lbs | 1134.0 kg |
| Operating Weight | 7370 lbs | 3343.0 kg |
| Tipping Load | 5000 lbs | 2268.0 kg |
| Lift Breakout Force | 4000 lbs | 1814.4 kg |
| Tilt Breakout Force | 4564 lbs | 2070.2 kg |
| Max. Travel Speed | 6.3 mph | 10.1 km |
| Ground Pressure | 5.2 psi | 35.8 kPa |
Cycle Time
| Raise Lift Arms | 3.6 sec. |
| Lower Lift Arms | 2.1 sec. |
| Bucket Rollback | 1.5 sec. |
| Bucket Dump | 1.8 sec. |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 19.5 GPM | 73.8 LPM |
| Relief Pressure | 3050 psi | 210.3 Bar |
| Optional Flow | 32.5 GPM | 123.0 LPM |
| Hydraulic Capacity | 13.2 gal | 50.0 L |
Engine Specs
| Manufacturer | Case |
| Model | 422T/M2 |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier II |
| Rated Speed | 2900 RPM |
| Torque Power | 1700 RPM |
| Combustion | Indirect injection |
| Compression Ratio | |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 59.0 HP | 44.0 kW |
| Net Power | 56.0 HP | 41.8 kW |
| Displacement | 134 cu in. | 2196 cc |
| Bore | 3.3 in. | 8.4 cm |
| Stroke | 3.9 in. | 10.0 cm |
| Peak Torque | 132 ft-lb | 179 N∙m |
| Coolant Capacity | 4.5 gal | 17.0 L |
| Engine Oil Capacity | 2.8 gal | 10.5 L |
| Fuel Tank Capacity | 22.0 gal | 83.3 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 75.5 in. | 191.8 cm |
| Bucket Hinge Pin | 114.6 in. | 291.1 cm |
| Width | 52.4 in. | 133.1 cm |
| Length | 123.2 in. | 312.9 cm |
| Dump Height | 89.4 in. | 227.1 cm |
| Dump Reach | 24.8 in. | 63.0 cm |
| Ground Clearance | 8.0 in. | 20.3 cm |
| Dump Angle | 40° |
| Rollback Angle | 32° |
| Departure Angle | 36° |
Tire Size
| US | Metric | |
|---|---|---|
| Track Width | 12.6 in. | 32.0 cm |
| Track Length | 100.0 in. | 254.0 cm |
| Ground Contact Length | 56.5 in. | 143.5 cm |
