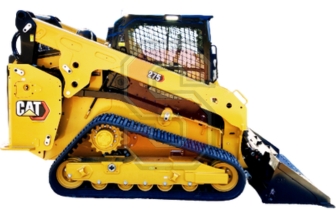

| Manufacturer | Caterpillar |
| Model | 275 |
| Type | Compact track loader |
| Lift Design | Vertical |
| Years Made | 2025 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 111.0 HP | 82.8 kW |
| Lifting Capacity (35% Tipping) | 4156 lbs | 1885 kg |
| Lifting Capacity (50% Tipping) | 5937 lbs | 2693 kg |
| Operating Weight | 12401 lbs | 5625 kg |
| Tipping Load | 11874 lbs | 5386 kg |
| Lift Breakout Force | 6422 lbs | 2913 kg |
| Tilt Breakout Force | 9963 lbs | 4519 kg |
| Max. Travel Speed | 7.8 mph | 12.5 km |
| Ground Pressure | 5.1 psi | 35.1 kPa |
Cycle Time
| Raise Lift Arms | |
| Lower Lift Arms | |
| Bucket Rollback | |
| Bucket Dump |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 23.0 GPM | 86.4 LPM |
| Relief Pressure | 3500 psi | 241.3 Bar |
| High Flow | 34.0 GPM | 128.3 LPM |
| Hydraulic Capacity | 9.7 gal | 36.8 L |
Engine Specs
| Manufacturer | Cat |
| Model | C3.6TA |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier 4F |
| Rated Speed | 2400 RPM |
| Torque Power | 1500 RPM |
| Combustion | Direct injection |
| Compression Ratio | |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 111.0 HP | 82.8 kW |
| Net Power | 109.0 HP | 81.3 kW |
| Displacement | 221 cu in. | 3622 cc |
| Bore | 3.9 in. | 9.8 cm |
| Stroke | 4.7 in. | 12.0 cm |
| Peak Torque | 370 ft-lb | 501 N∙m |
| Coolant Capacity | 4.6 gal | 17.5 L |
| Engine Oil Capacity | 2.4 gal | 9.0 L |
| Fuel Tank Capacity | 36.0 gal | 136.1 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 87.8 in. | 223.0 cm |
| Bucket Hinge Pin | 134.4 in. | 341.5 cm |
| Width | 75.8 in. | 192.5 cm |
| Length | 152.8 in. | 358.0 cm |
| Dump Height | 106.1 in. | 269.4 cm |
| Dump Reach | 32.0 in. | 81.4 cm |
| Ground Clearance | 11.0 in. | 28.0 cm |
| Dump Angle | 44.7° |
| Rollback Angle | 27.3° |
| Departure Angle | 29.5° |
Tire Size
| US | Metric | |
|---|---|---|
| Track Width | 15.7 in. | 39.9 cm |
| Track Length | 128.0 in. | 325.0 cm |
| Ground Contact Length | 72.3 in. | 183.6 cm |
