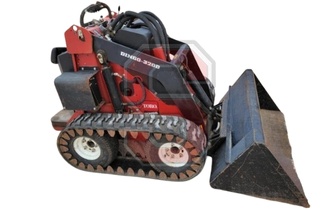

| Manufacturer | Toro Dingo |
| Model | 320D |
| Type | Mini skid steer |
| Lift Design | Radial |
| Years Made | 2010-2025 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 20.0 HP | 14.9 kW |
| Lifting Capacity (35% Tipping) | ||
| Lifting Capacity (50% Tipping) | 524 lbs | 238 kg |
| Operating Weight | 1722 lbs | 781 kg |
| Tipping Load | 1048 lbs | 475 kg |
| Lift Breakout Force | ||
| Tilt Breakout Force | ||
| Max. Travel Speed | 3.0 mph | 4.8 km |
| Ground Pressure |
Cycle Time
| Raise Lift Arms | |
| Lower Lift Arms | |
| Bucket Rollback | |
| Bucket Dump |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 4.0 GPM | 15.1 LPM |
| Relief Pressure | 3250 psi | 224.1 Bar |
| Optional Flow | 10.8 GPM | 40.9 LPM |
| Hydraulic Capacity | 14.8 gal | 56.0 L |
Engine Specs
| Manufacturer | Kubota |
| Model | D722 |
| Type | Diesel |
| Cylinders | 3 |
| Rated Speed | 3600 RPM |
| Torque Power | 2600 RPM |
| Combustion | Spherical type (ETVCS) |
| Compression Ratio | 23.5:1 |
| Firing Order | 1-2-3 |
| US | Metric | |
|---|---|---|
| Gross Power | 20.0 HP | 14.9 kW |
| Net Power | 18.8 HP | 14.0 kW |
| Displacement | 44 cu in. | 719 cc |
| Bore | 2.6 in. | 6.7 cm |
| Stroke | 2.7 in. | 6.8 cm |
| Peak Torque | 32.4 ft-lb | 43.9 N∙m |
| Coolant Capacity | 1.2 gal | 4.7 L |
| Engine Oil Capacity | 0.9 gal | 3.4 L |
| Fuel Tank Capacity | 4.0 gal | 15.1 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 48.7 in. | 123.7 cm |
| Bucket Hinge Pin | 66.0 in. | 167.6 cm |
| Width | 40.5 in. | 103.0 cm |
| Length | 82.2 in. | 208.8 cm |
| Dump Height | 47.0 in. | 119.0 cm |
| Dump Reach | 28.0 in. | 71.1 cm |
| Ground Clearance | 5.8 in. | 15.0 cm |
| Dump Angle | 34° |
| Rollback Angle | |
| Departure Angle |
Undercarriage
| US | Metric | |
|---|---|---|
| Track Width | 7.0 in. | 18.0 cm |
| Track Length | 60.0 in. | 152 cm |
| Ground Contact Length |
