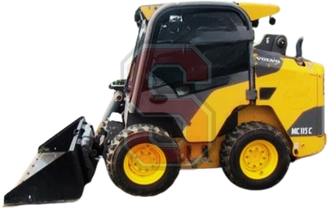

| Manufacturer | Volvo |
| Model | MC115C |
| Type | Skid steer loader |
| Lift Design | Vertical |
| Years Made | 2013-2015 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 74.0 HP | 55.2 kW |
| Lifting Capacity (35% Tipping) | ||
| Lifting Capacity (50% Tipping) | 2600 lbs | 1179 kg |
| Operating Weight | 8604 lbs | 3903 kg |
| Tipping Load | 4907 lbs | 2226 kg |
| Lift Breakout Force | 5884 lbs | 2669 kg |
| Tilt Breakout Force | 5700 lbs | 2585 kg |
| Max. Travel Speed | 6.8 mph | 10.9 km |
| Optional High Speed | 12.4 mph | 20.0 km |
Cycle Time
| Raise Lift Arms | 3.5 sec. |
| Lower Lift Arms | 2.3 sec. |
| Bucket Rollback | 1.4 sec. |
| Bucket Dump | 1.8 sec. |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 23.8 GPM | 90.0 LPM |
| Relief Pressure | 3335 psi | 23 Bar |
| Optional Flow | 33.0 GPM | 125 LPM |
| Hydraulic Capacity | 15.9 gal | 60.0 L |
Engine Specs
| Manufacturer | Volvo |
| Model | TC-55 |
| Type | Diesel |
| Cylinders | 4 |
| Rated Speed | 2400 RPM |
| Torque Power | 1800 RPM |
| Combustion | Direct injection |
| Compression Ratio | 18.1 |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 74.0 HP | 55.2 kW |
| Net Power | 73.1 HP | 54.5 kW |
| Displacement | 268 cu.in. | 4399 cc |
| Bore | ||
| Stroke | ||
| Peak Torque | 241 ft-lb | 327 N∙m |
| Coolant Capacity | 4.1 gal | 15.5 L |
| Engine Oil Capacity | 4.0 gal | 15.0 L |
| Fuel Tank Capacity | 27.2 gal | 103.0 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 82.3 in. | 209.0 cm |
| Bucket Hinge Pin | 125.0 in. | 317.5 cm |
| Width | 71.7 in. | 182.0 cm |
| Length | 145.2 in. | 369.0 cm |
| Dump Height | 96.9 in. | 246.0 cm |
| Dump Reach | 23.2 in. | 59.0 cm |
| Ground Clearance | 9.4 in. | 23.8 cm |
| Dump Angle | 42° |
| Rollback Angle | 30° |
| Departure Angle | 28.7° |
