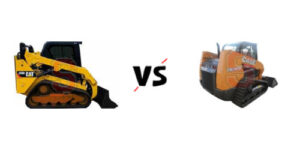

Case Tr310b vs Cat 259d

Specifications Cat 259d
Cat 259d
Case Tr310b
Case Tr310b
Lift DesignVerticalRadial
Years Made2015-20202019-2025
Horsepower74.3 HP74.0 HP
Lifting Capacity (35% Tipping)2030 lbs2170 lbs
Lifting Capacity (50% Tipping)2900 lbs3100 lbs
Operating Weight8846 lbs8880 lbs
Tipping Load5800 lbs6200 lbs
Max. Travel Speed8.5 mph5.1 mph
Pump Flow20.0 GPM24.2 GPM
Relief Pressure3335 psi3046 psi
High Flow30.0 GPM
Optional Flow32.4 GPM
Peak Torque159 ft-lb232 ft-lb
Bucket Hinge Pin121.0 in.125.1 in.
Length137.3 in.129.1 in.
Dump Height89.9 in.100.6 in.
Dump Reach23.9 in.25.6 in.
Track Length108.9 in.104.8 in.
Ground Contact Length59.0 in.55.9 in.
  • Cat 259d has better Horsepower.
  • Case Tr310b has better Weight.
  • Case Tr310b has better Lifting Capacity.
  • Case Tr310b has better Tipping Load.
  • Cat 259d has better Travel Speed.
  • Case Tr310b has better Peak Torque.
  • Case Tr310b has better Pin Height.

Compare Two Different Models



This page provides specification comparisons for skid steer loaders to support your purchasing decisions. It does not promote, criticize, or advertise any specific brand or model. Only technical specs are compared on this page: Features, comfort, and additional options are not evaluated. Please note that specs may vary by model year. Please consult your dealer to verify the accuracy of the information. The information provided on our site is for general informational purposes only and does not constitute any commercial commitment; users are responsible for evaluating all data at their own discretion.
