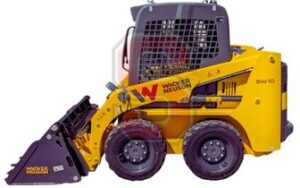

| Manufacturer | Wacker Neuson |
| Model | SW10 |
| Type | Skid steer loader |
| Lift Design | Radial |
| Years Made | 2024-2026 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 24.8 HP | 18.5 kW |
| Lifting Capacity (35% Tipping) | 661 lbs | 300 kg |
| Lifting Capacity (50% Tipping) | 948 lbs | 430 kg |
| Operating Weight | 4398 lbs | 1995 kg |
| Tipping Load | 2271 lbs | 1030 kg |
| Lift Breakout Force | 2091 lbs | 1181 kg |
| Tilt Breakout Force | 2316 lbs | 866.8 kg |
| Max. Travel Speed | 5.6 mph | 9.0 km |
Cycle Time
| Raise Lift Arms | |
| Lower Lift Arms | |
| Bucket Rollback | |
| Bucket Dump |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 8.5 GPM | 32.0 LPM |
| Relief Pressure | 2610 psi | 180 Bar |
| Optional Flow | N/A | |
| Hydraulic Capacity |
Engine Specs
| Manufacturer | Kubota |
| Model | V1505-E4B |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier 4 |
| Rated Speed | 2300 RPM |
| Torque Power | 1700 RPM |
| Combustion | Indirect injection |
| Compression Ratio | 23:1 |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 24.8 HP | 18.5 kW |
| Net Power | ||
| Displacement | 91.4 cu in. | 1498 cc |
| Bore | 3.1 in. | 7.8 cm |
| Stroke | 3.1 in. | 7.8 cm |
| Peak Torque | ||
| Coolant Capacity | 3.2 gal | 12.0 L |
| Engine Oil Capacity | 1.2 gal | 4.5 L |
| Fuel Tank Capacity | 11.9 gal | 45.0 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 75.8 in. | 192.5 cm |
| Bucket Hinge Pin | 107.0 in. | 271.7 cm |
| Width | 49.2 in. | 125.0 cm |
| Length | 117.3 in. | 297.9 cm |
| Dump Height | 81.9 in. | 208.0 cm |
| Dump Reach | ||
| Ground Clearance | 7.9 in. | 20.0 cm |
| Dump Angle | 40° |
| Rollback Angle | 25° |
| Departure Angle | 26° |
